New Equipment for latest ECU’s

We have recently invested in new equipment which enables us to program the latest generation of engine management control units with locked Tri core processors. We are one of a very small number of businesses who have invested in this equipment which will allow us to performance tune and remove particulate filters from the very latest vehicles (2009 and later)

For those who are interested in the more technical aspect (If not I’d advise you stop reading now)

MEDC17 TRICORE IROM/XROM BOOT-MODE WITH LOCKED MICROPROCESSOR

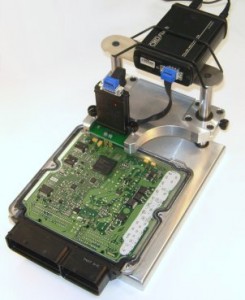

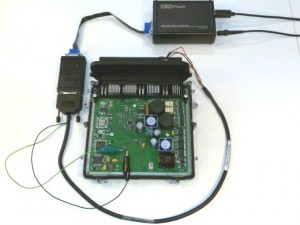

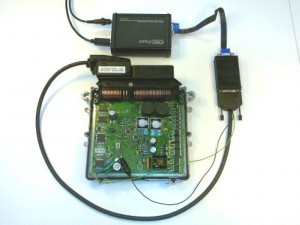

Early versions of the Tri core EDC17 processor can be programmed through the diagnostic port. Since around 2008, the latest generation of these are locked which means this is no longer possible. To program the locked version of this processor the ECU has to be opened and programmed in “Boot mode” as it would be from the factory. This requires the ECU to be positioned in a jig so connections from the interface to the board can be made through an arrangement of pins. Also, in many cases extra connections and resistors are temporarily soldered to specific parts of the ECU.



Some of the ECU’s covered with the new equipment are

MED17 MINI/PSA
EDC17CP06 HONDA
EDC17CP11 LANDROVER/JAGUAR ( TDV6 )
EDC17CP11 CITROEN
EDC17CP01 MERCEDES (G320 / E350)
EDC17CP10 MERCEDES (Sprinter)
EDC17C08 KIA/HYUNDAI ( Soul )
EDC17CP09 BMW (x30D)
MED17 FIAT-ALFA-LANCIA
EDC17C19 OPEL ( Insignia )
EDC17CP02 BMW (120D/123D)
MED17.x VAG
EDC17CP14 KIA/HYUNDAI ( Sorento )
EDC17CP07 TOYOTA ( IQ )
EDC17CP04 VAG
EDC17CP14 VAG
EDC17CP20 VAG
EDC17CP24 VAG
EDC17U0x VAG
MEV17.4 PSA
EDC17CP22 VOLVO
EDC17C10 PSA
ME17.8.5 SEA-DOO
MED17.2 MINI
EDC17CP19 RENAULT
MED17.46 BMW
EDC17C46 VAG
MEVD17.2.2 MINI
MEVD17.2.2 PEUGEOT
EDC17CP44 VAG/PORSCE
EDC17CP44
EDC17C41 BMW
EDC17CP45 BMW
EDC17C10 FORD
MED17.9.1 KIA
MEV17.2.2 MINI
MED17.1.1 VAG
MEVD17.2 BMW
MEV17.4.2 PSA
MED17 FORD/VOLVO
EDC17CP27 JEEP
EDC17C18 OPEL
SID807 PSA
SID807 FORD/VOLVO
EDC17CP46 MERCEDES
EDC17CP52 PSA
EDC17CP42 LAND-ROVER/FORD
ME17 SUZUKI
EDC17C43 MERCEDES
ME17.9.7 LADA
EDC17CP52 IVECO
TPROT-8/10 on VAG cars
